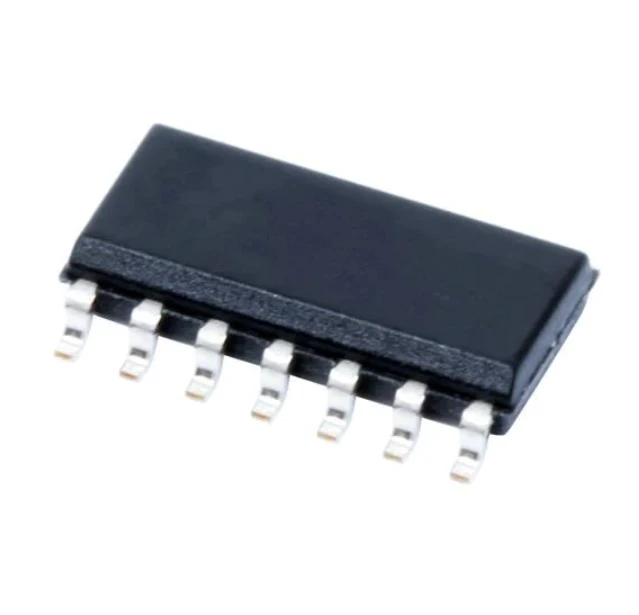

OPA4277UA/2K5

OPA4277UA/2K5

(0) 0 Reviews 0 Orders 0 Wish listed

$5.40 ~~$6.00~~

Quantity:

Total price :

(Tax : )

Manufacturer:	Texas Instruments
Product Category:	Precision Amplifiers
RoHS:	Details
Number of Channels:	4 Channel
GBP - Gain Bandwidth Product:	1 MHz
SR - Slew Rate:	800 mV/us
Vos - Input Offset Voltage:	20 uV
Ib - Input Bias Current:	500 pA
Supply Voltage - Max:	18 V
Supply Voltage - Min:	2 V
Operating Supply Current:	790 uA
Output Current per Channel:	35 mA
CMRR - Common Mode Rejection Ratio:	140 dB
en - Input Voltage Noise Density:	8 nV/sqrt Hz
Package / Case:	SOIC-14
Mounting Style:	SMD/SMT
Shutdown:	No Shutdown
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 85 C
Series:	OPA4277
Packaging:	Reel
Packaging:	Cut Tape
Packaging:	MouseReel
Amplifier Type:	Low Offset Amplifier
Brand:	Texas Instruments
Dual Supply Voltage:	+/- 3 V, +/- 5 V, +/- 9 V
Height:	1.58 mm
In - Input Noise Current Density:	0.2 pA/sqrt Hz
Input Type:	Rail-to-Rail
Length:	8.65 mm
Maximum Dual Supply Voltage:	+/- 18 V
Minimum Dual Supply Voltage:	+/- 2 V
Moisture Sensitive:	Yes
Operating Supply Voltage:	4 V to 36 V, +/- 2 V to +/- 18 V
Output Type:	Rail-to-Rail
Product:	Precision Amplifiers
Product Type:	Precision Amplifiers
PSRR - Power Supply Rejection Ratio:	130.46 dB
Factory Pack Quantity:	2500
Subcategory:	Amplifier ICs
Supply Type:	Single, Dual
Technology:	Bipolar
Voltage Gain dB:	140 dB
Width:	3.91 mm
Unit Weight:	0.004564 oz
